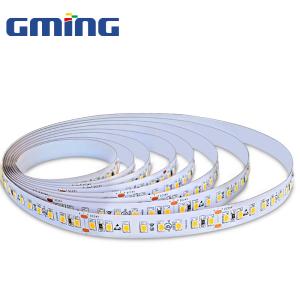

12mm pcb 120LEDs/m 26W Smd2835 Flexible Led Strip Light

Brand Name : GM

Model Number : GM-2835-120-12V

Certification : CE ROHS UL

Place of Origin : CHINA

MOQ : 100M

Price : 1.85-3.5USD/M

Payment Terms : T/T, Western Union

Supply Ability : 200000M/MOUTH

Delivery Time : 3-7WORKING DAYS

Packaging Details : LED strip lights 5m(16.4') per roll in the anti-static bag

Item Type : Light Strips

Type : Flex LED Strips

Input Voltage(V) : DC24V/12V

Lamp Power : 12W/m

Lamp Luminous Flux(lm) : 24-26lm/led

CRI (Ra>) : 80/90

LED Quantity : 120 LEDs/m

LED Type : Epistar Chip SMD 2835 led strip

PCB Color : white/black/yellow

IP Rating : IP20/IP65/IP67/IP68

Contact Now

26W White PCB smd2835 flexible led strip light for outdoor lighting

Product Description

White PCB smd2835 flexible led strip light 150led DC12V-24V single color strip light. This versatile LED Strip light is in 4.8W/M (0.8 Watts foot). It uses a 2835 LED Chip placed every 1.31”(33.3mm). This LED Strip has low Density Lighting with 30 didoes per meter or (9/ft). It is cuttable every 3 LED chips or 4”(100mm) for 12VDC and every 6 LED chips or 8”(200mm) for 24VDC.

Specification

Model	GM-H2835Y-168-X-IPX	GM-H2835Y-196-X-IPX
Work Voltage	24VDC	24VDC
LED Qty (pcs/m)	168	196
CCT	2200-6500K	2200-6500K
Lumen(lm/m)	2580-2620lm	2710-2900lm
Ra	80+	80+
Max Power	26W	28W
IP Rate	IP20	IP20
Warranty	3 Years	3 Years
pcb Width	W=12mm	W=12mm
PCB Thickness	2Oz	2Oz

12mm pcb 120LEDs/m 26W Smd2835 Flexible Led Strip Light

Why choose GM LED Strip Light

1.PCB board: GM use at least 2 ounces pcb board, some are 3 ounces and 4 ounces for better dissipation. They are 100% pure copper. Most of our PCB board are UL listed from the PCB producer of Hongqi Lighting and Founder Soonest Electronics.
2.LED Chip: GM mostly use Epistar brand led chips. We can do other brand chips according to customer’s request, for example, Cree, Samsung, , San’an, Honglitronic and Smalite led chips. All of these led chips are in high quality. We only focus on high quality.
3.Color Rendering Index: GM use at least Ra80 led chips to do our led strip lights. When we test by the integrating sphere machine, it usually shows Ra85 for most of our led chips. We also use many Ra90 and Ra95 led chips for special projects. We can offer the test report for each batch of our led strip light.
4.Uniformity: GM always keep the same bin color temperature for all our led strip lights. It’s very important to our customers.
5.Waterproof Rating: We not only can offer traditional IP20 IP65, IP67, IP68 waterproof process, but also new silicon extrusion process forIP20 IP65, IP66, IP67, IP68 waterproof ratings in dotless milk encapsulations. Most of our waterproof mold are private mode. More information, please refer to ……
6.Engineer Team: GM have our own engineer team. Whatever flexible strip pcb or rigid strip pcb, our engieer team can draw greber file for customers in the first time. We welcome all OEM and ODM orders from all over the world.
7.Service:Most of GM led strips are CE, ROHS, cUL and UL listed. UL NO: E494659. We warranty 3 years. Welcome to visit our factory, or send us email by Contact us.

Parameter:

Light Angle	120 degree
Product length	5M/Roll
Power rating	12W/M
PCB color	White PCB
Operating Temperature	-20℃~+45℃
Storage temperature	-20℃~+60℃
Environment humidity	40-70% RH
LED Life time	Mean time between failure(MTBF):50-100K hours
Voltage	DC12V-24V
PCB width	8mm

Features:

1. 100% Brand New.
2. Super bright 2835 SMD top LED, high intensity and reliability.
3. Continuous length, packed with 5 meter.
4. Cuttable every 6 LEDs along the cutting marks, according to practical requirement.
5. Long life span 50,000+ hours.
6. Flexible ribbon for curving around bends.
7. Low power consumption.
8. Completely smooth and even light spread, solving the uneven luminous problem.
9. Ultra-bright but running at low temperature.
10. High brightness, low power, long life, easy installation, the production of highly customizable.
11. Easy for transporting, decorative effect is brilliant, energy saving, environmental protection.

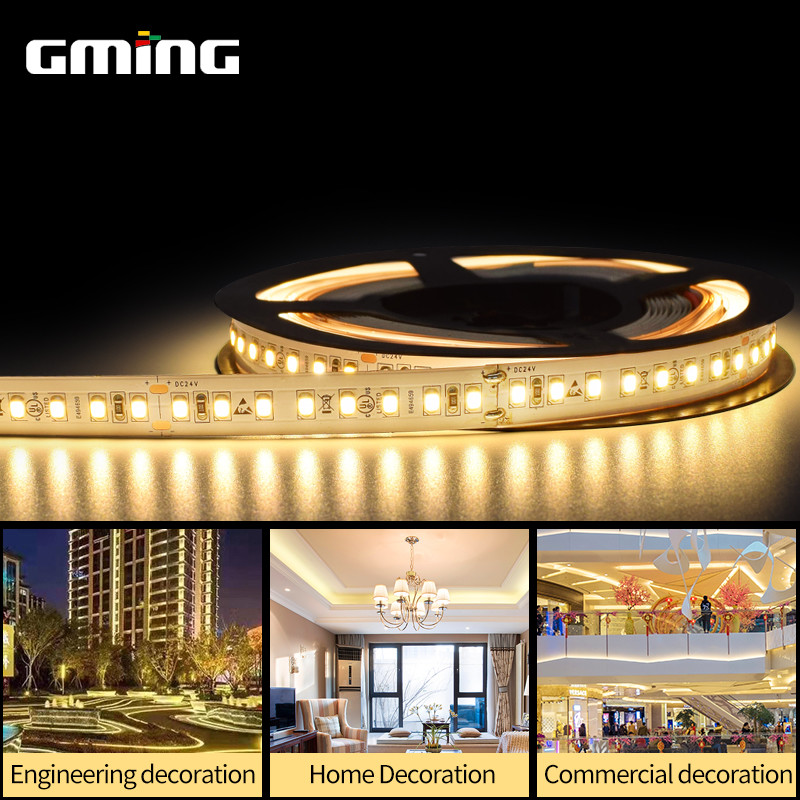

Applications:

1. Interior design, such as decoration of home, hotel, KTV, bar, disco, club etc.

2. Architectural design, such as Decorative lighting of buildings, edge lighting decoration etc.
3. Advertisement project, such as Outdoor illuminated signs, billboard decoration etc.
4. Display design, such as decoration of drinks cabinet, shoe cabinet, jewelry counter etc.
5. Underwater lighting engineering, such as decoration of fish tank , aquarium, fountain etc

Packaging & Shipping , Trade Terms:

Type	Outer Carton Size(L×W×H) (cm)	Qty/Carton(roll)	G. W(kg/roll)
IP20	543038	120	0.15
IP65/IP67	543038	100	0.25
3528 IP68	543038	100	0.35
5050 IP68	543038	100	0.45

Shipping

Packaging Detail: box packing according to clients' requirements, OEM and ODM is available.
Delivery Detail: 2-5days for samples,6-10 days for mass production.
Shipping Detail:By express: Such as DHL,UPS, TNT, FEDEX ect.
Air Freight:When you order moer than 100kg which will be more economical than express,
Sea freight: Shipping by SEA is available after customer provide destination port.
Agent designated by client: Please tell us the contact details of your shipping agent/forwarder.

Payment Terms

Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery.
MOQ: 1pcs,
Warranty : 3 years,
Package Informations: 100rolls per box /The volume of the box is 54cmx30cmx38cm .
